Dyknow’s Import Manager tool allows Dyknow Administrators to easily import data from the Infinite Campus SIS into Dyknow solutions. These products include both Dyknow Classroom and Securly Reveal.
UPDATE: Infinite Campus recently announced they will no longer support OneRoster 1.1 with OAuth1 starting on June 30, 2023. This is due to an announcement from IMS/1EdTech, the consortium who created and maintains the OneRoster specification, announcing they have deprecated OAuth1 for OneRoster connections. This integration guide will help you setup your Infinite Campus SIS integration using OneRoster 1.1 with OAuth2.
Note: Infinite Campus uses the “primary” field to identify the Primary Teacher of a Class. When multiple Teachers are listed for a class, all will be assigned to the class and displayed in alphabetical order.
This document is a resource for Dyknow Administrators to understand how to:
- Generate Infinite Campus Integration Credentials
- Enter Infinite Campus Integration Credentials
- Sync Infinite Campus Data in Dyknow
- Disable Infinite Campus Integration
Prerequisite: Manage Roster Import Settings
GENERATE INFINITE CAMPUS INTEGRATION CREDENTIALS
Follow the steps below to generate your Infinite Campus SIS integration credentials.
- Please review documentation provided by Infinite Campus that details how to setup a OneRoster Connection with partners. As of March 2023, documentation maintained by Infinite Campus could be found HERE
- Log in to your Infinite Campus system as an Administrator.
- Click Add Application, then scroll to the bottom and click Connect to Other Applications.
- Enter either Dyknow Classroom or Securly Reveal as the Application Name. The image displayed in the vendor is the first letter of the entered name.
- Generate credentials and prepare to enter them into the Dyknow/Securly system
2. Navigate to System Administration :: User Security :: OAuth Management :: OAuth Client Management.
Note: If the previous path is not available, try navigating to System Administration :: Learning Interoperability.
The OAuth Client Management tool allows users to create credentials for third-party programs to retrieve Campus data. Adding an OAuth Client record creates a set of credentials that a third-party program can use to retrieve Campus data.
3. Click New to create a new credential record.
4. Enter Dyknow into the Client Name field.
5. Enter Dyknow into the Consumer Key field (following the hard-coded prefix).
6. Click Save.
7. Note the Infinite Campus API Host Name (Base URL), Consumer Key, and Consumer Secret – they will be necessary to complete the Infinite Campus Integration in Dyknow. Click the checkbox to Show Secret Text if hidden.
Note: Infinite Campus uses the terms Consumer Key and Consumer Secret synonymously with username and password.
8. Continue to Enter Infinite Campus Integration Credentials.
ENTER INFINITE CAMPUS INTEGRATION CREDENTIALS
Follow the steps below to enter your Infinite Campus integration credentials for either Dyknow Classroom or Securly Reveal.
1. Click the gear icon ; you will be redirected to the Admin Settings.
2. Click the Import Manager tab.
3. Click Setup.

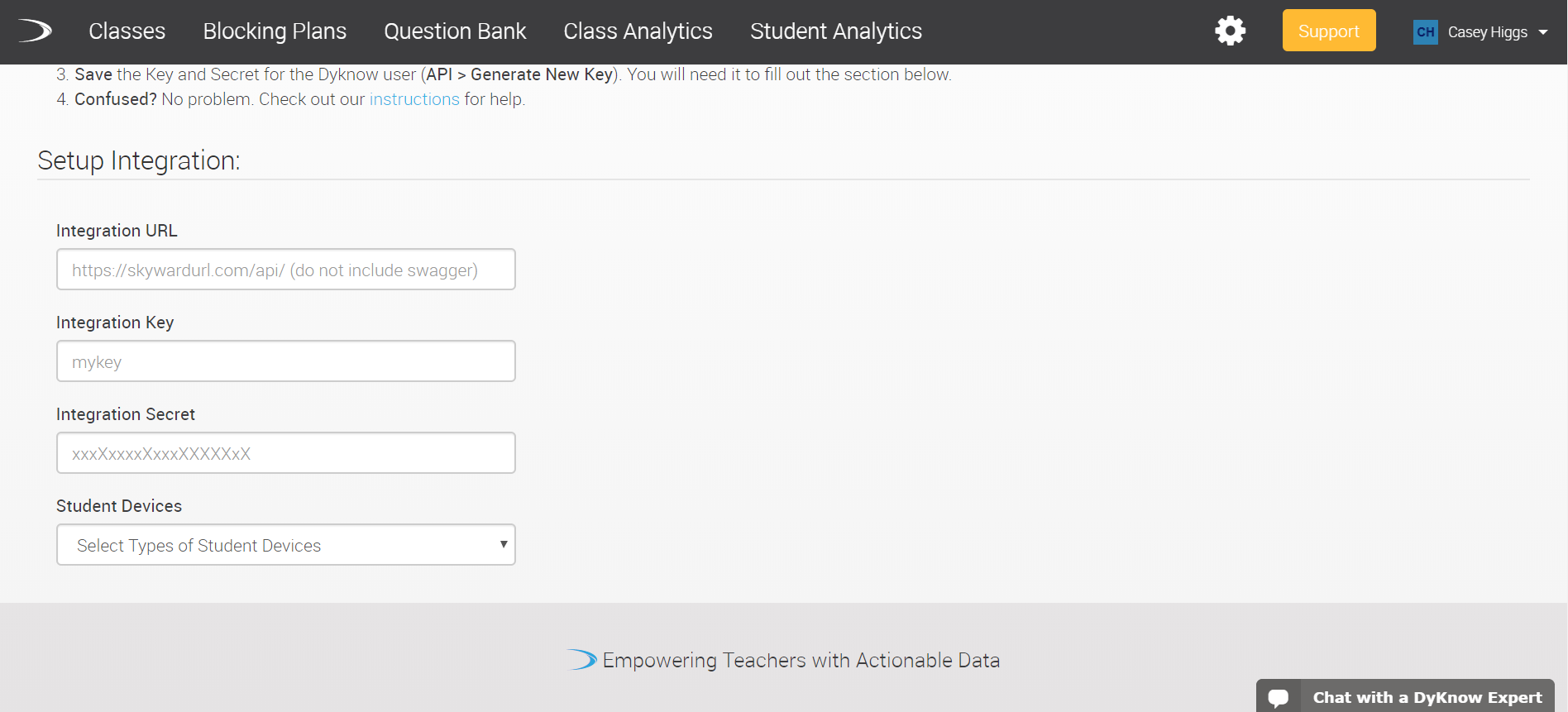

4. Locate the Setup Integration section.
5. Enter your Infinite Campus API Host URL into the Integration URL field.
6. Enter your Infinite Campus Consumer Key into the Integration Key field.
7. Enter your Infinite Campus Consumer Secret into the Integration Secret field.
8. Click to Select Types of Student Devices from the Student Devices field; review the options below:
- Only Chromebooks (No Windows and/or Mac devices used)
- No Chromebooks (Only Windows and/or Mac devices used)
- Mix of Chromebooks and non-Chromebooks
9. Click Continue: Process Import.
10. Continue to Sync Infinite Campus Data in Dyknow.
SYNC INFINITE CAMPUS DATA IN DYKNOW
Follow the steps below to sync your Infinite Campus data in Dyknow.
1. Click the gear icon ; you will be redirected to the Admin Settings.
2. Click the Import Manager tab.
3. Click Import.
4. Click Process Import.

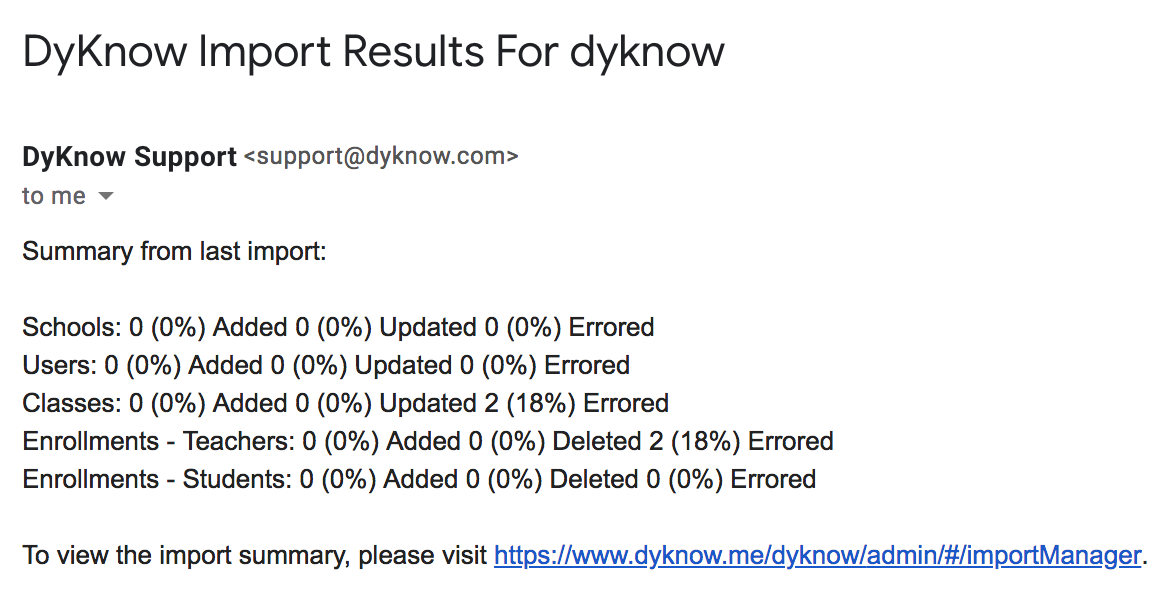

5. You will receive an Import Results confirmation email once your import is complete.
Note: If your data files include errors and any changes that exceed Import Thresholds, you will receive a Check Your Data email in addition to the Import Results confirmation email. To review and validate your data file import errors/changes, read the Validate Paused SIS Imports article.
DISABLE INFINITE CAMPUS INTEGRATION
Please contact Securly Support to disable your Infinite Campus integration.
